Part number: 82241150
Pulldown Visetong VTDA115H OD: 2″- 8″
Description
Pulldown Visetong VTDA115H OD: 2″- 8″
PETOL VISETONGS are designed to operate best when large makeup torques are required and when heavy loads are needed to breakout tool joints, drill collars, reamers, and similar heavy jobs. A hydraulic cylinder can be attached to the end of the tong handle.
PETOL VISETONGS have the unique feature of being easily adjusted to various pipe sizes by simply sliding the heat-treated PETOL Special Chain through the jaw of the tong and engaging the locking cam lever. Regardless of the load on the handle, these tongs will not jam.
PETOL VISETONGS have minimum crushing effect, and great strength for their weight. Made of high-quality steel, these tongs are equipped with replaceable high-speed steel PETOL Diamond Point Inserts, which minimize marring of pipe surfaces. PETOL VISETONGS come in both pushup and pulldown designs.
(PN: 82241150)
VISETONGS |
||||||
| ITEM | O.D.* | GRIPPING WIDTH | HANDLE LENGTH | WEIGHT ** | US MAX WORKING LOAD | Nm MAX WORKING LOAD |
| PULLDOWN VISETONGS | ||||||
| VTDA115H | 2″ – 8″ | 5.25″ | 24″ | 79 lbs. | 14,000 ft.-lbs. | 18970 Nm |
| VTDA116H | 4″ – 14″ | 7.25″ | 36″ | 176 lbs. | 50,000 ft.-lbs. | 67750 Nm |
| VTDA118 | 4″ – 24″ | 9.00″ | 46″ | 317 lbs. | 90,000 ft.-lbs. | 121950 Nm |
| VTDA120 | 6″ – 24″ | 12.63″ | 36″ | 575 lbs. | 235,000 ft.-lbs. | 318425 Nm |
| PUSHUP VISETONGS | ||||||
| VTUA118 | 4″ – 24″ | 9.00″ | 54″ | 328 lbs. | 75,000 ft.-lbs. | 101625 Nm |
| VTUA118-L36 | 4″ – 24″ | 9.00″ | 36″ | 294 lbs. | 72,000 ft.-lbs. | 97560 Nm |
| VTUA120 | 6″ – 24″ | 12.63″ | 42″ | 559 lbs. | 182,500 ft.-lbs. | 247287 Nm |
| *Chain assemblies must be ordered separately. See chain guide. **Weights do not include chain. | ||||||

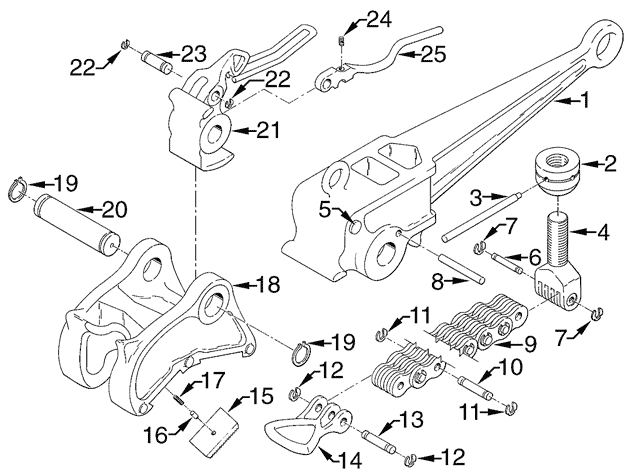

Visetong |
||
| KEY NO | ITEM DESCRIPTION | NO. REQ’D. |
| 1 | HANDLE | 1 |
| 2 | CHAIN SCREW NUT | 1 |
| 3 | CHAIN SCREW NUT LEVER | 1 |
| 4 | CHAIN SCREW | 1 |
| 5 | HANDLE PIN | 1 |
| 6,7 | CHAIN SCREW | 1 |
| PIN W/KLIPRINGS | ||
| 8 | LATCH PIN | 1 |
| 9 | SPECIAL CHAIN ONLY | 1 |
| 10 | CHAIN PIN | as req’d. |
| 11 | CHAIN PIN KLIPRING ONLY | as req’d. |
| 12,13 | CHAIN HANDLE | 1 |
| PIN W/KLIPRINGS | ||
| 14 | CHAIN HANDLE | 1 |
| 15 | INSERT | 4 |
| 16 | INSERT KEY | 4 |
| 17 | INSERT KEY SPRING | 4 |
| 18 | JAW | 1 |
| 19,2 | JAW PIN W/KLIPRINGS | 1 |
| 21 | PAWL | 1 |
| 22,23 | PAWL LATCH | 1 |
| RIVET W/KLIPRINGS | ||
| 24 | LATCH SPRING | 1 |
| 25 | PAWL LATCH | 1 |
| NOTE: PARTS MAY VARY SLIGHTLY AMONG SIZES | ||
Specifications, drawings and part lists
VTDA VTUA Visetong Specifications
All Gearench Wrenches and Tongs Catalog
OR CALL US FOR DETAILS +31 (0) 317 840 197
