Part Number: SPTKTZ3150
TSURUMI KTZ31.5 Submersible Pump
Description
Tsurumi KTZ31.5 (KTZ31.5-51)
The Tsurumi KTZ31.5 is a generally applicable high grade pump that can be used efficiently in draining in civil engineering. Tsurumi has built a powerful new series of pumps to match the demands tough drainage jobs.
Rugged & efficient
By offering a cast iron pump body, our durability is increased over the standard almimium body pumps. With each motor size there is a choice between high head and high volume performance ranges.
Efficient motor cooling though a side flow channel but maintaining the slim design with top discharge. The latest developed mechanical seal endires higher pressure and makes the pump usable at greater depth, such in deep wells, and the usual general constructions sites.
Tsurumi KTZ31.5 Details
| Classification Electric submersible pump Degree of protection IP68 Depth of submersion max. 50mtr Type of impeller open Max. solid handling 8,5mm Suitable for: spring-/rain-/waste-/ground water, water containing sand |
Shaft Seal Double mechanical seal in oil bath additional lubrication by oil lifting device Primary Seal: silicon carbide on silicon carbide Secondary Seal: silicon carbide on carbon |
| Electric Motor Dry-type submersible induction motor Insulation class F 2Poles 2840 1/min Rated voltage 400 V 50 Hz 3~ Power uptake 2.17 kW Starting mode Directly Rated power 1.5 kW Rated current 3.5 A Start current 22.0 A |
Bearings Shielded ball bearings, maintenance-free Materials Impeller: Chromium Iron Casting Pump casing: FC200 (EN-GJL-200) Suction cover: FCD500 (EN-GJS-500-7) Motor Frame: FC150 (EN-GJL-150) Shaft: SUS420J2 (EN-X30Cr13) |
| Electric Cable 20m H07RN-F 4Cx1,5mm2 Motor Protection Circle thermal protector (snap-action bi-metal device) |
Discharge Connection 3” (80mm) Hose Coupling (threaded flange) Weight 30 kg (dry weight of the pump only without cable) |

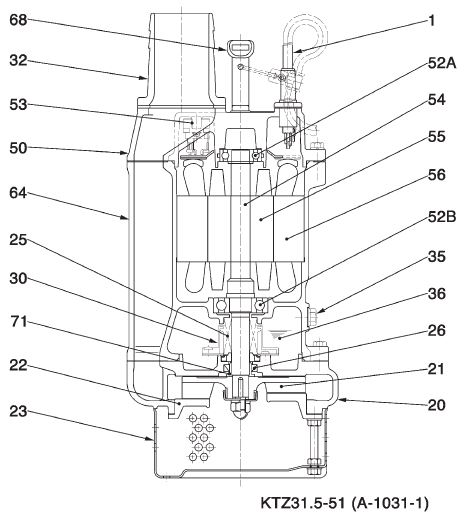

Tsurumi KTZ31.5 Sectional Drawing
| No. | Description | Qty. | Remarks | No. | Description | Qty. | Remarks | |
| 1 | Cabtyre Cable | 1 | H07RN-F | 53 | Motor Protector | 1 | ||
| 20 | Pump Casing | 1 | FC200 (EN-GJL-200) | 54 | Shaft | 1 | SUS420J2 (EN-X30Cr13) | |
| 21 | Impeller | 1 | Chromium Iron Casting HiCrFC | 55 | Rotor | 1 | ||
| 22 | Suction Cover | 1 | FCD500 (EN-GJS-500-7) | 56 | Stator complete | 1 | ||
| 23 | Strainer Stand | 1 | Steel Plate SPCC | 64 | Motor Frame | 1 | FC150 (EN-GJL-150) | |
| 25 | Mechanical Seal | 1 | H-20T | 68 | Handle | 1 | Steel Plate SPCC + Rubber NBR | |
| 26 | Oil Seal | 1 | DD25388 | 71 | Shaft Sleeve | 1 | SUS304 (EN-X5CrNi18-10) | |
| 30 | Oil Lifter | 1 | Plastic | |||||
| 32 | Hose Coupling | 1 | Aluminium Alloy Casting ADC12 | |||||
| 35 | Oil Plug | 1 | SUS304 (EN-X5CrNi18-10) | |||||
| 36 | Lubricant | Turbine Oil (ISO VG32) | ||||||
| 50 | Motor Bracket | 1 | FC150 (EN-GJL-150) | |||||
| 52A | Upper Bearing | 1 | 6204ZZC3 | |||||
| 52B | Lower Bearing | 1 | 6305ZZC3 |
To clear up: for instance the Pump type can look like KTZ43.7-50, the -50 determines minor differences between the models.
Note: please include exact pump type and possibly the serial number in the inquiry.
We supply many Tsurumi submersible pumps and parts, please submit your inquiry to: info@dupagro.com.
Specifications, drawings and part lists
 |
Tsurumi General Submersible Pump Catalog |
| |
General KTZ Slurry Series Pump Information |
| |
KTZ31.5-51 Specifications and Part List |
