Project Description
R25E Mud Reclaiming System
The R25E Mud Reclaiming System is manufactured to meet the required capacity. The Reclaiming Equipment Pumps are of international known standards and are made of wear resistant Hard Iron Cast Steel, have long life mechanical shaft seals with backup packings.

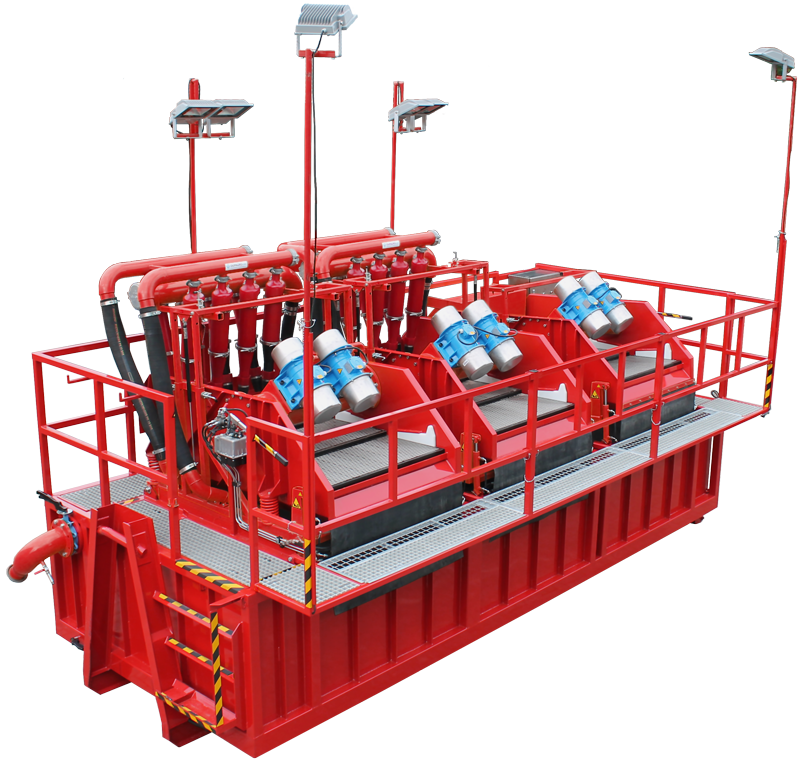

The R25E Mud Reclaiming System has a very small footprint (20ft footprint, however 2,8mtr high), the fluid tank with built up three single deck mud shakers, one being the primary shale shaker and two the final mud cleaner. The circulation pumps will feed the high flow hydro cyclones,a Tsurumi submersible pump will transfer the cleaned driling bentonite to your Mixing System. The maximum delivery capacity is 2500 ltr/min with 20% solids in.
Shown R25E is a special, challenge was to make this unit’s shipping size not over 262cm height including hook arm.

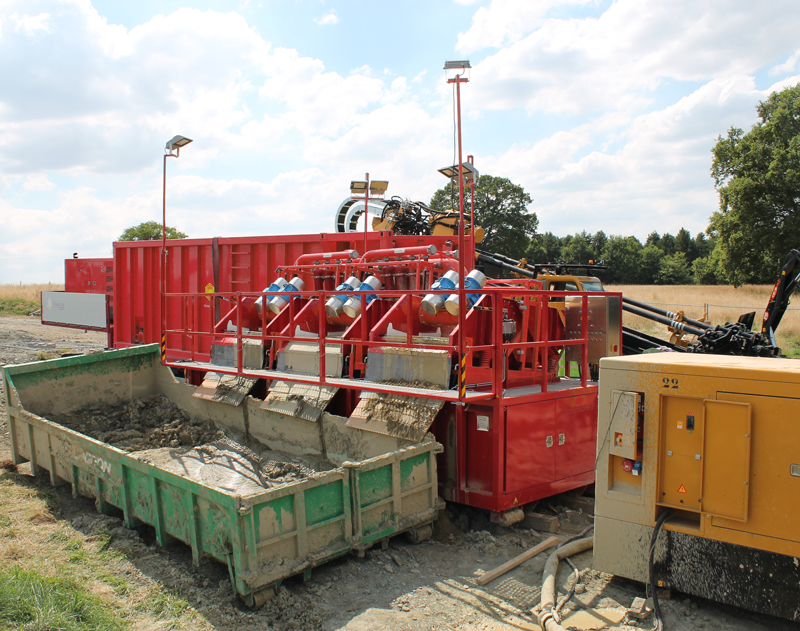

This way the customer could get under lower bridges and trees to his jobsites.
Al systems can be modified to customer’s wishes and capacities.
R25E General Specifications
Capacity: 2500 ltr/min.
Standard Frame: 20 ft. footprint, however 2.80cm high *
Special Frame: 20 ft. footprint, however 2.42cm high *
(* excluding hook arm system)
Engines: Electric.
Pumps: US 250Style with mechanical seal.
Shaker type: Dupagro Tiger Shaker™.
Cyclones: High flow.
Total tank capacity: > 10.000 ltr steel tanks
Connections: 6″ inlet and 4″or 6″ outlet.
Painting: high gloss finish paint in customer RAL color.
We will customize our R25E Mud Reclaiming System. Shown unit is a Special
ADDITIONAL INFORMATION
Having troubles in wrapping you head around the recycling / reclaiming idea?
Read this article from Trenchless Technology in this pdf buying-mud-recycling-system-article or online: http://trenchlessonline.com/buying-mud-recycling-system/
Do note that all rights are reserved to Trenchless Technology, we are simply displaying online information.
