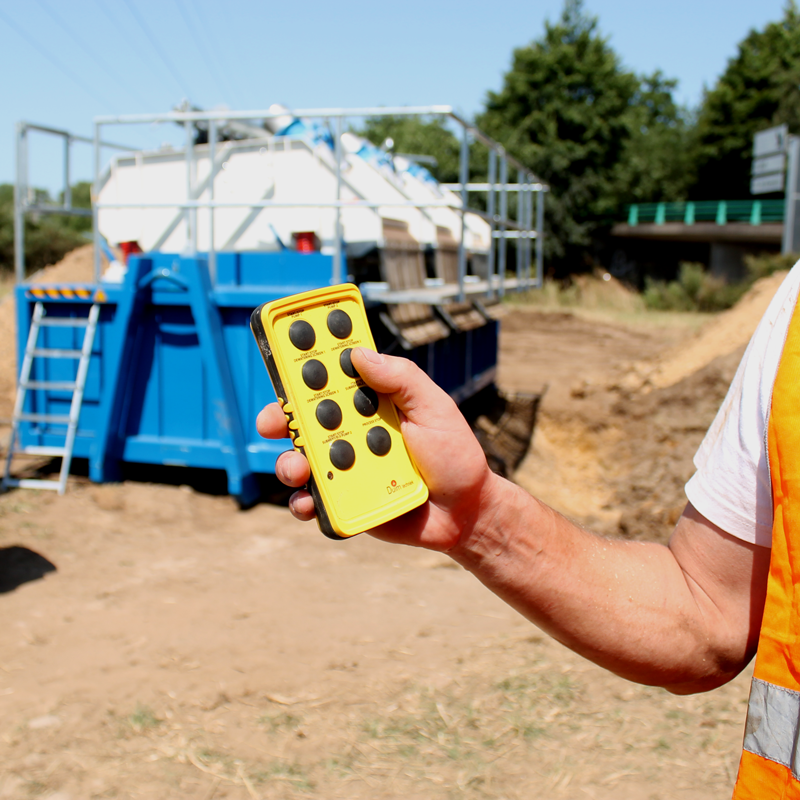

R20E Mud Reclaiming System
The R20E Mud Reclaiming System is manufactured to meet the required capacity. The Reclaiming Equipment Pumps are of international known standards and are made of wear resistant Hard Iron Cast Steel, have long life mechanical shaft seals with backup packings.

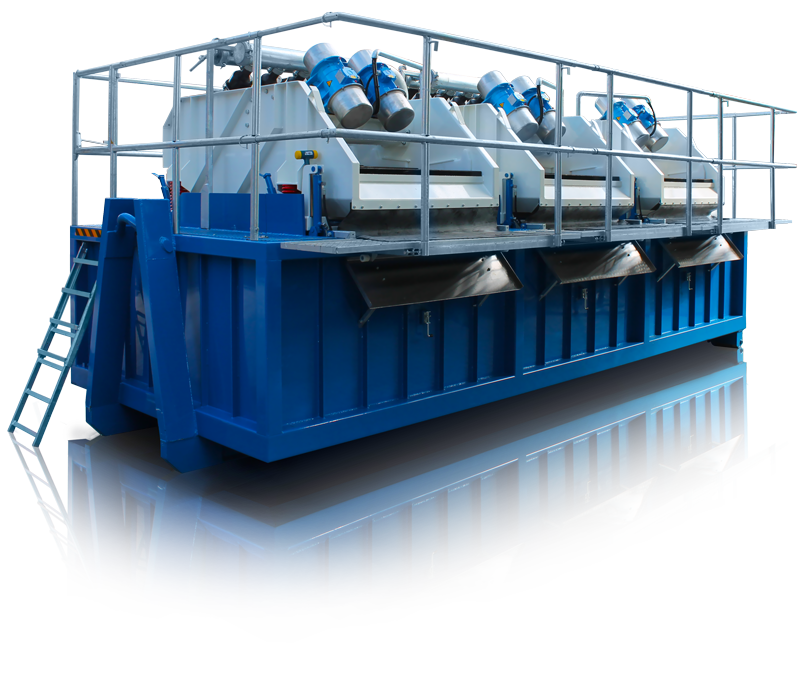

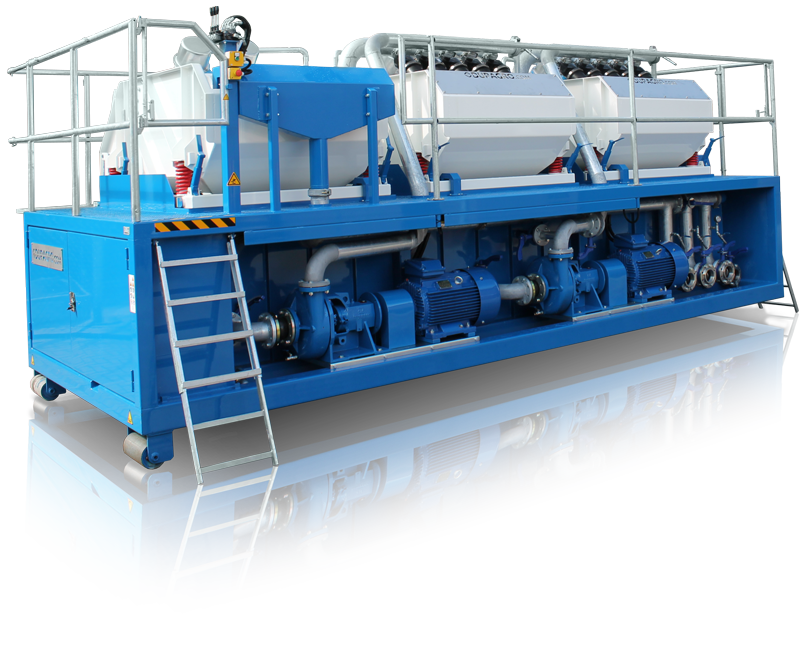

The R20E Mud Reclaiming System has a very small footprint (20ft container size for transport), the fluid circulation tank with built up three single deck mud shakers, one being the primary shale shaker and two as final mud cleaner. The circulation pumps will feed the high flow hydrocyclones, a Tsurumi submersible pump will transfer the cleaned driling bentonite to your Mixing System. The maximum delivery capacity is 2000 ltr/min with 20% solids in.

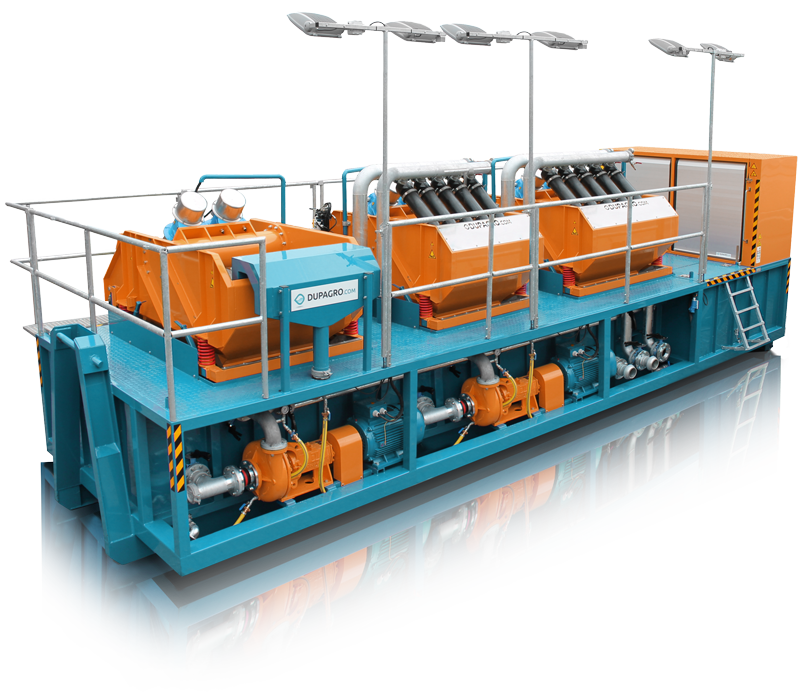

The R20EL has an extra large clean bentonite storage tank and cabinet with electrical cabinet and storage room.
Al systems can be modified to customer’s wishes and capacities.
R20E General Specifications
Capacity: 2000 ltr/min.
Frame: 20 ft. container size for transport.
Engines: Electric.
Pumps: US 250Style with mechanical seal.
Shaker type: Dupagro Tiger Shaker™.
Cyclones: High flow.
Total tank capacity: > 10.000 ltr steel tanks
Connections: 4″ inlet and 4″ outlet.
Painting: high gloss finish paint in customer RAL color.
We will customize our R20E Mud Reclaiming System.
R20EL General Specifications
Similar to R20E but with extra clean mud storage tank.
Capacity: 2000 ltr/min.
Frame: 30 ft. container size for transport.
Engines: Electric.
Pumps: US 250Style with mechanical seal.
Shaker type: Dupagro Tiger Shaker™.
Cyclones: High flow.
Total tank capacity: > 15.500 ltr steel tanks
Connections: 4″ inlet and 4″ outlet.
Painting: high gloss finish paint in customer RAL color.
We will customize our R20E Mud Reclaiming System as shown here.
ADDITIONAL INFORMATION
Having troubles in wrapping you head around the recycling / reclaiming idea?
Read this article from Trenchless Technology in this pdf buying-mud-recycling-system-article or online: http://trenchlessonline.com/buying-mud-recycling-system/
Do note that all rights are reserved to Trenchless Technology, we are simply displaying online information.
