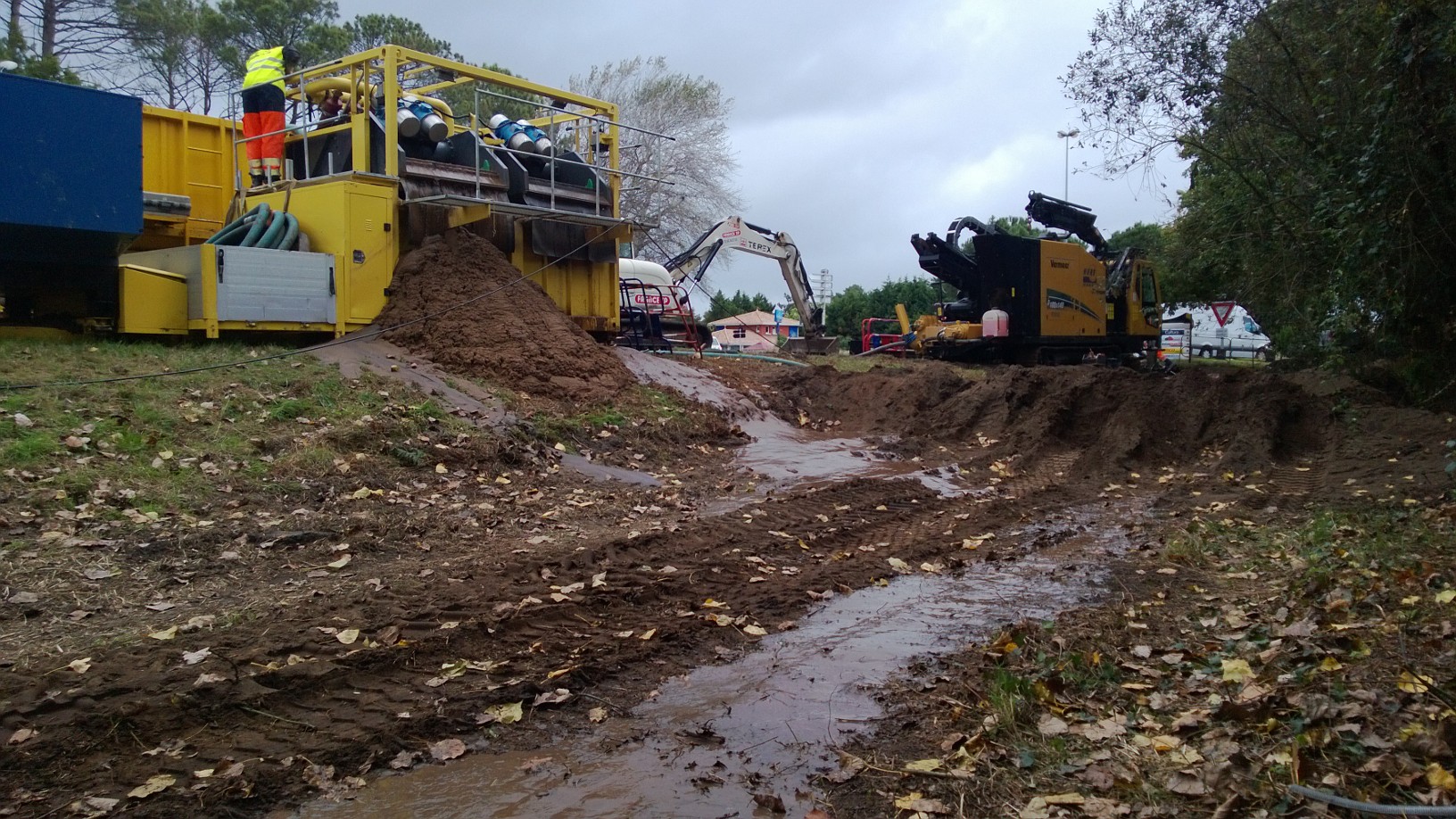

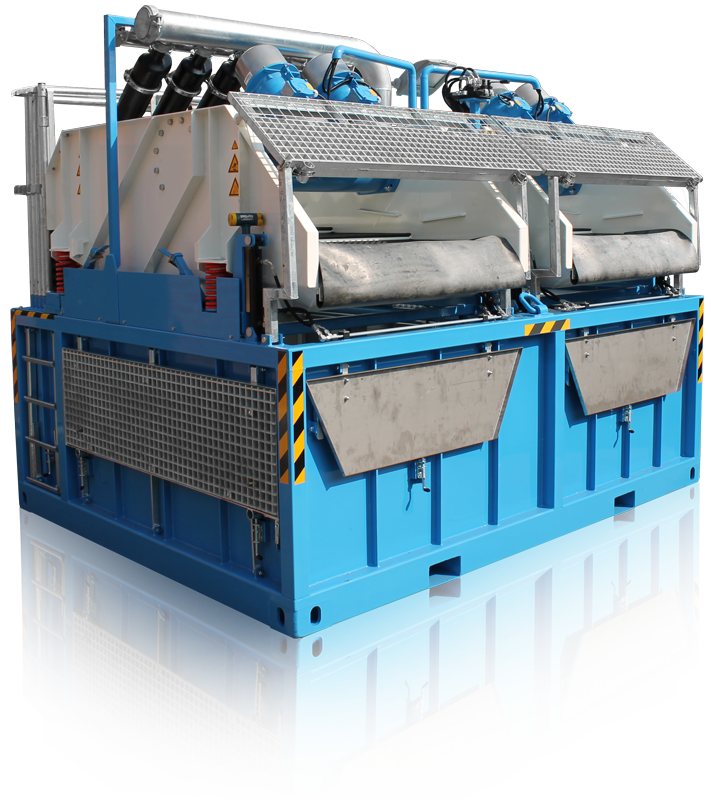

R10E Mud Reclaiming System

The R10E Mud Reclaiming System is manufactured to meet the required capacity. The Reclaiming Equipment Pumps are of international known standards and are made of wear resistant Hard Iron Cast Steel, have long life mechanical shaft seals with backup packings.

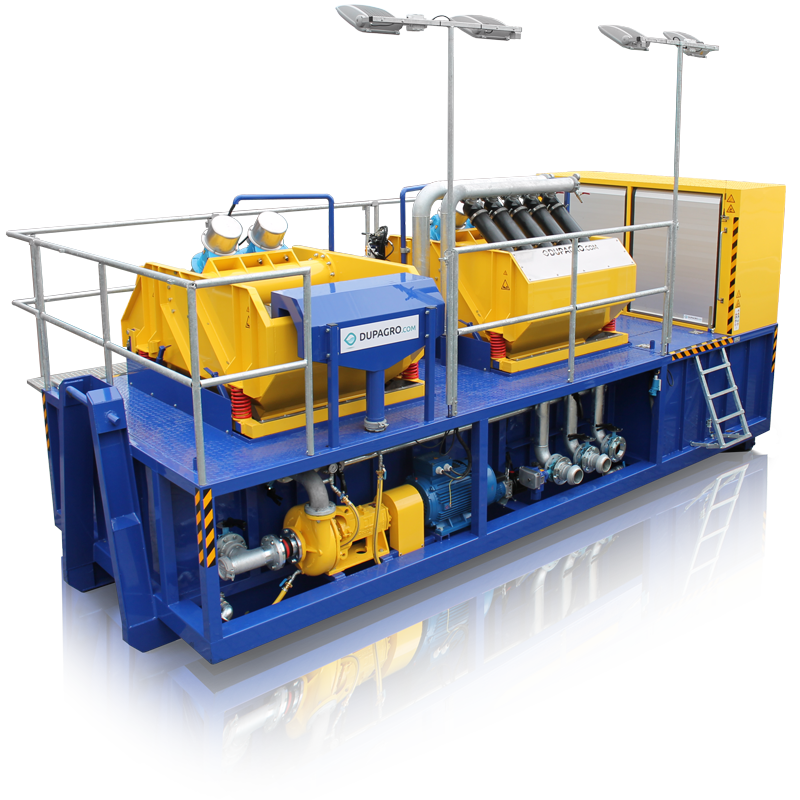

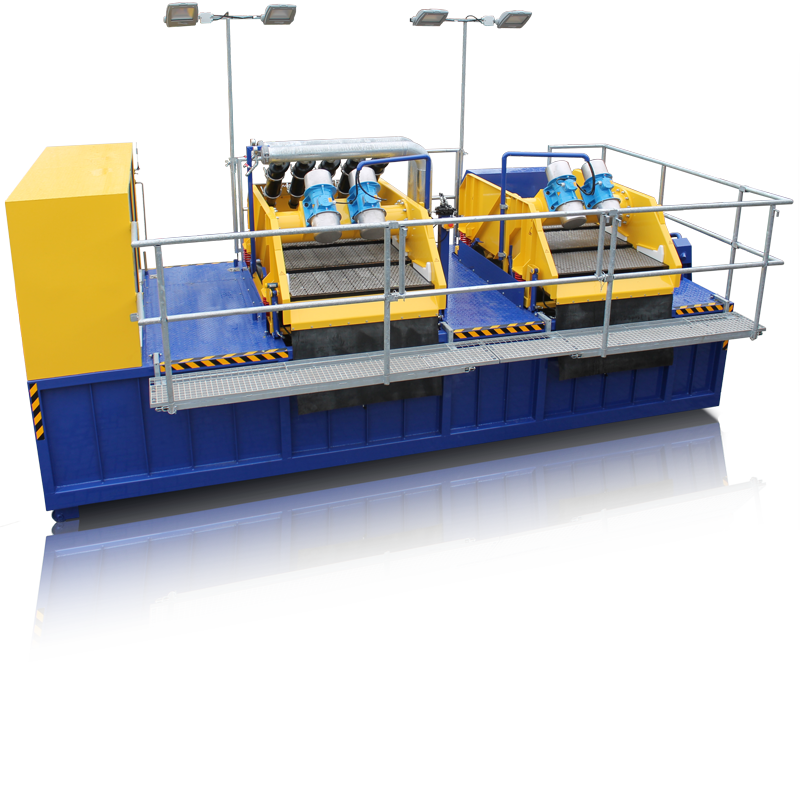

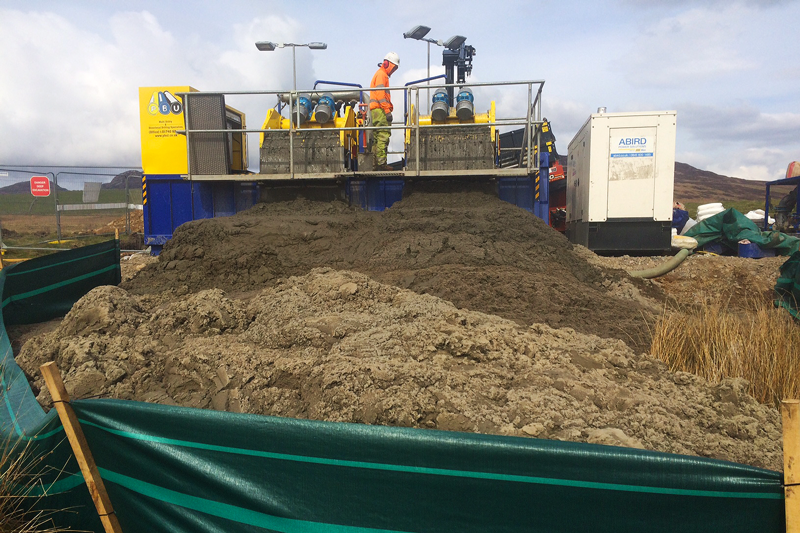

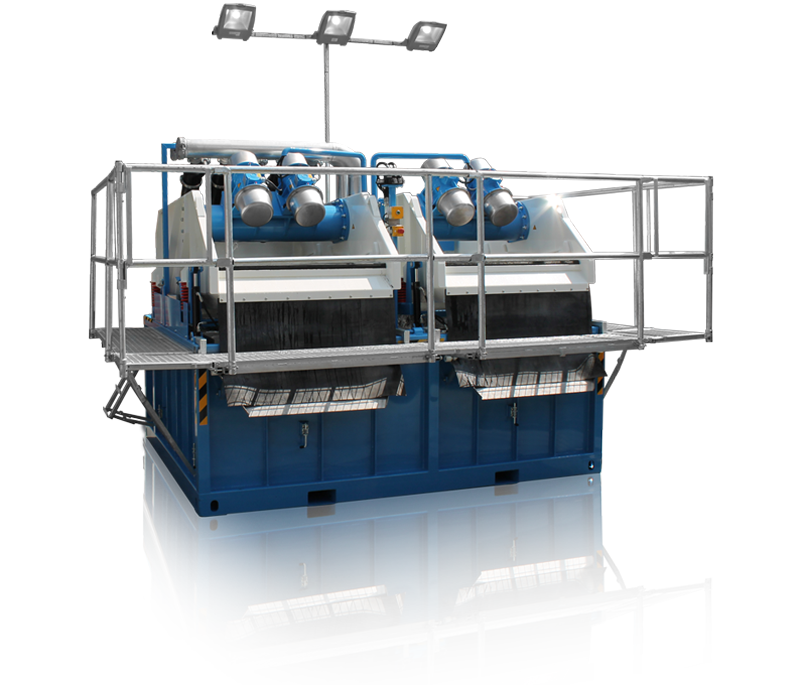

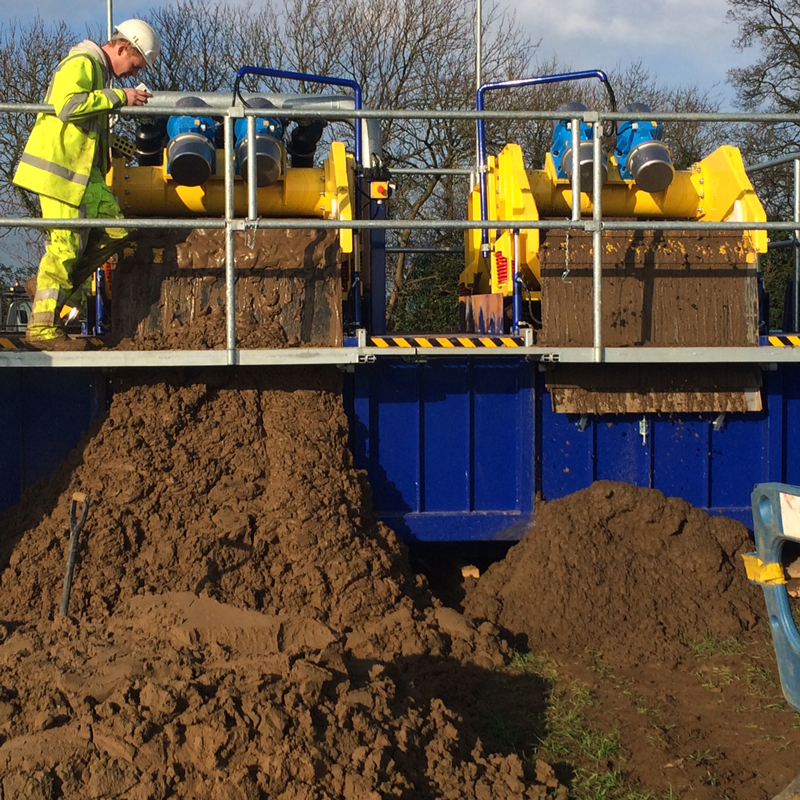

The R10E Mud Reclaiming System  has a very small footprint, the fluid tank with built up two single deck mud shakers, one being the primary shale shaker and the second one as final mud cleaner. The circulation pump will feed the high flow hydrocyclones, a Tsurumi submersible pump will transfer the cleaned driling bentonite to your Mixing System. The maximum delivery capacity is 1000 ltr/min with 20% solids in.

Al systems can be modified to customer’s wishes and capacities.

R10E Mud Reclaiming System General Specifications

Delivery: 1000 ltr/min.
Engine: Electric.
Circulation Pump: US 250Style with mechanical seal.
Transfer Pump: Tsurumi
Connections: 4″ inlet and 4″ outlet.
Painting: high gloss finish paint in customer RAL color.

We will customize our Mud Reclaiming System.

  • Mud Reclaiming System
  • R10E Mud Reclaiming System
  • R10E Mud Reclaiming System

R10E Mud Reclaiming System + HAS General Specifications

20ft Container size R10E with extra large clean mud storage tank.
Delivery:
 1000 ltr/min.
Engine: Electric.
Circulation Pump: US 250Style with mechanical seal.
Transfer Pump: Tsurumi
Connections: 4″ inlet and 4″ outlets.
Painting: high gloss finish paint in customer RAL color.
Inluding: Hook Arm System (HAS) and Generator

We will customize our Mud Reclaiming System.

  • R10EL Mud Reclaiming System R10E Mud Reclaiming System
  • R10EL Mud Reclaiming System R10E Mud Reclaiming System
  • Mud Reclaiming System
  • Mud Reclaiming System

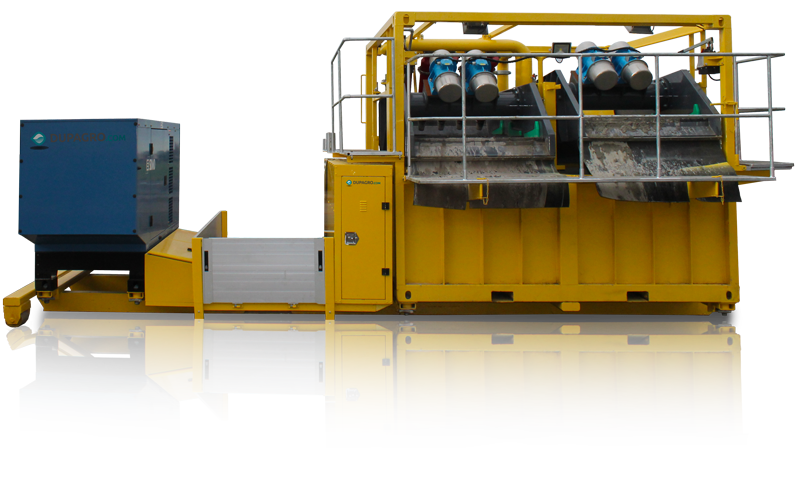

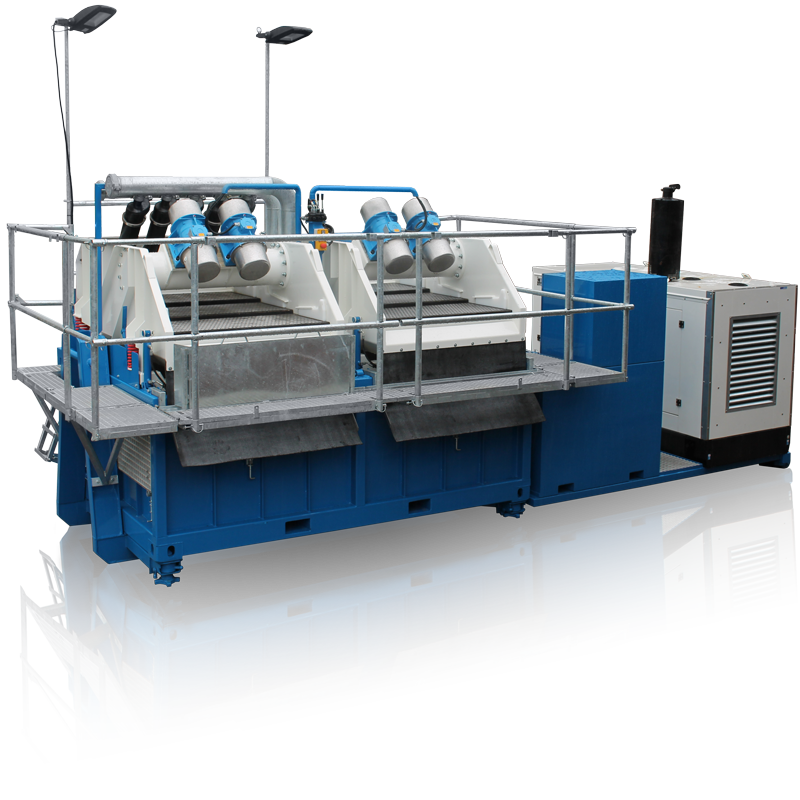

R10E Mud Reclaiming System +HAS+GEN General Specifications

20ft Hook Arm System with R10E and Generator
Delivery: 1000 ltr/min.
Engine: Electric.
Circulation Pump: US 250Style with mechanical seal.
Transfer Pump: Tsurumi
Connections: 4″ inlet and 4″ outlet.
Painting: high gloss finish paint in customer RAL color.
Inluding: Hook Arm System (HAS) and Generator

We will customize our Mud Reclaiming System.

  • R10E Mud Reclaiming System
  • R10E Mud Reclaiming System
  • R10E Mud Reclaiming System

ADDITIONAL INFORMATION

Having troubles in wrapping you head around the recycling / reclaiming idea?

Read this article from Trenchless Technology in this pdf buying-mud-recycling-system-article or online: http://trenchlessonline.com/buying-mud-recycling-system/
Do note that all rights are reserved to Trenchless Technology, we are simply displaying online information.
